HSNA002D
HSN

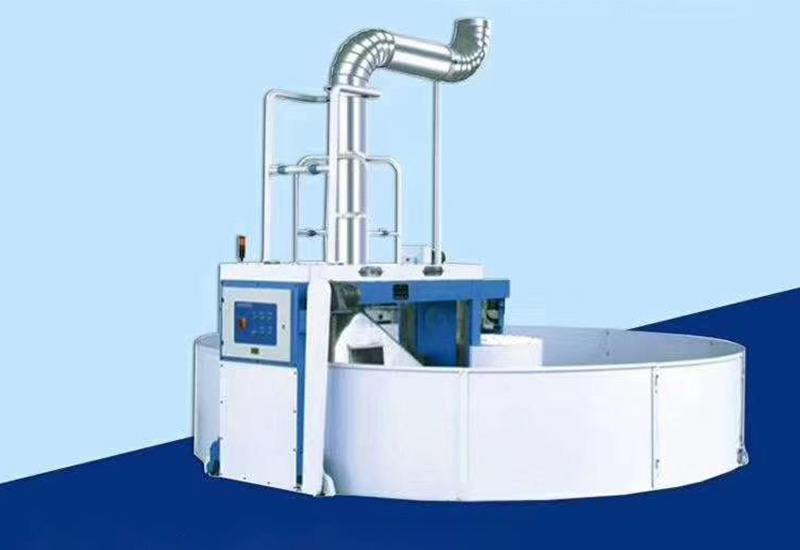

HSNA002D is used at the initial fiber-preparation stage of a spinning line to pluck material from bales for subsequent processing. The existing application covers cotton and man-made fibers shorter than 76 mm. Material suitability and the connection to downstream equipment should be reviewed for each project.
The original specification table compares HSNA002D with HSNFA002A. HSNA002D is described as a single-unit arrangement; HSNFA002A is described as an arrangement generally operating with two units in parallel. They are separate model configurations, not interchangeable specifications. Confirm the required model and equipment quantity in the quotation.
| Component | Description |
| Telescopic tube | Material-transfer connection. |
| Carriage | Moving assembly for the plucking operation. |
| Plucking beater | Works on the fiber bales during initial opening. |
| Slip ring | Part of the rotating assembly. |
| Inner circular wall | Inner boundary of the bale-loading area. |
| Outer circular wall | Outer boundary of the bale-loading area. |
Type | HSNA002D | HSNFA002A |
Output kg/h | 800 | |
Loading capacity kg | 2000 | 4000 (two sets) |
Speed of beater r/min | 740 | |
Blade extension from grid mm | 2.5—7.5 | |
Speed of carriage r7min | 1.7;2.3 | 0.59-2.96 |
Diameter of rail mm | 5192 | |
Height mm | 4155 | |
Power capacity kw | 3.8 | 4.17 |
Net weight kg | About 1600 | |
The figures above reproduce the existing model comparison. Output depends on the material and line conditions. Confirm carriage-speed terminology and units, overall installation dimensions, power requirements and equipment quantity in the final model-specific quotation.
The existing page lists two wooden cases: case 1, 300 x 150 x 150 cm; case 2, 200 x 200 x 150 cm. Confirm the packing arrangement and shipping dimensions for the ordered configuration before booking freight.
| Project Information | Details to Send HSN |
| Fiber material | Cotton or man-made fiber type, fiber length, bale condition and representative photos or samples. |
| Bale layout | Bale dimensions and weight, number of bales, available loading space and planned blending arrangement. |
| Required output | Target kg/h, daily operating hours and the downstream line capacity. |
| Line integration | Existing opening and cleaning equipment, material-transfer arrangement and control interface requirements. |
| Installation conditions | Workshop layout, clear height, electrical supply and access for loading, maintenance and installation. |
| Quotation and testing | Destination country, schedule and trial requirements. Confirm the model, supply scope, packing and performance acceptance criteria. |
Send your bale material details and workshop layout to request a configuration review and quotation. Material testing, where required, and the acceptance criteria should be agreed before ordering.
