Automatic Refeeding Opening Machine

  • HSN400N
  • HSN
  • 84451190
  • Reasonable Structure and High Efficiency
  • Textile Waste Recycling
Availability:
Quantity:

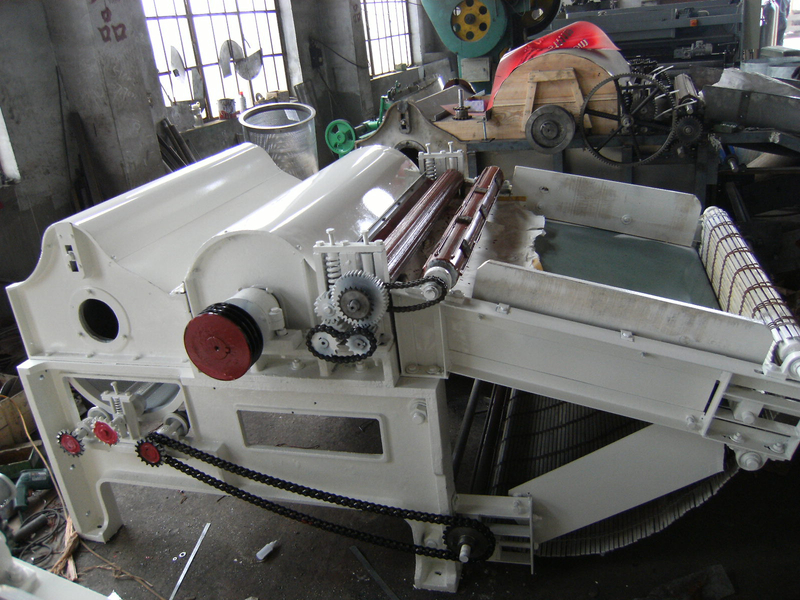

HSN400N Opener / Automatic Refeeding Opening Machine

Brief introduction
HSN400N Opener / Automatic Refeeding Opening Machine equipped with 16inch iron doffer for opening, ratio of fiber opened can be up to 95%, it keeps fiber good frizzy and smooth, that is best for filling the products in fluffy, resilience. HSN400N Opener with high automation, it can auto continuously recycle of un-opened fabrics waste that are carried out till the waste (yarn/chindi) convert into fibers.

HSN400N Opener adopts gear-worm type gearbox with inverter motor to control feeding speed, the iron doffer is mounted high quality card clothing.

Technical specifications

Model

HSN400N

Working width

1000mm

Licker-in Roll Diameter

16inch/400mm

Roller rotation speed

1178rpm

Card Clothing (teeth / inch)

3.5 or 4.5

Suction fan power/ rotation speed

1x1.5kw / 2900rpm

Main Motor Power

11kw

Overall Dimension

1200x1500x1150mm

Weight

1100kg

Output

100 - 150kg/hour


Application
HSN400N Opener is used for opening textile waste/chindi/fabric waste/yarn waste, the recycled fibers are suitable for mattress, bedding, gaddi, quilts, pillow, sofa filling etc.


HSN400N Opener / Automatic Refeeding Opening Machine

Brief introduction

HSN400N Opener / Automatic Refeeding Opening Machine equipped with 16inch iron doffer for opening, ratio of fiber opened can be up to 95%, it keeps fiber good frizzy and smooth, that is best for filling the products in fluffy, resilience. HSN400N Opener with high automation, it can auto continuously recycle of un-opened fabrics waste that are carried out till the waste (yarn/chindi) convert into fibers.

HSN400N Opener adopts gear-worm type gearbox with inverter motor to control feeding speed, the iron doffer is mounted high quality card clothing.


Technical specifications

Model

HSN400N

Working width

1000mm

Licker-in Roll Diameter

16inch/400mm

Roller rotation speed

1178rpm

Card Clothing (teeth / inch)

3.5 or 4.5

Suction fan power/ rotation speed

1x1.5kw / 2900rpm

Main Motor Power

11kw

Overall Dimension

1200x1500x1150mm

Weight

1100kg

Output

100 - 150kg/hour


Application
HSN400N Opener is used for opening textile waste/chindi/fabric waste/yarn waste, the recycled fibers are suitable for mattress, bedding, gaddi, quilts, pillow, sofa filling etc.
