Automatic Refeeding Fabric Opening Machine

  • HSN600B
  • HSN
  • 84451190
  • Easy operation and Safe production
  • Textile Waste Recycling
Availability:
Quantity:

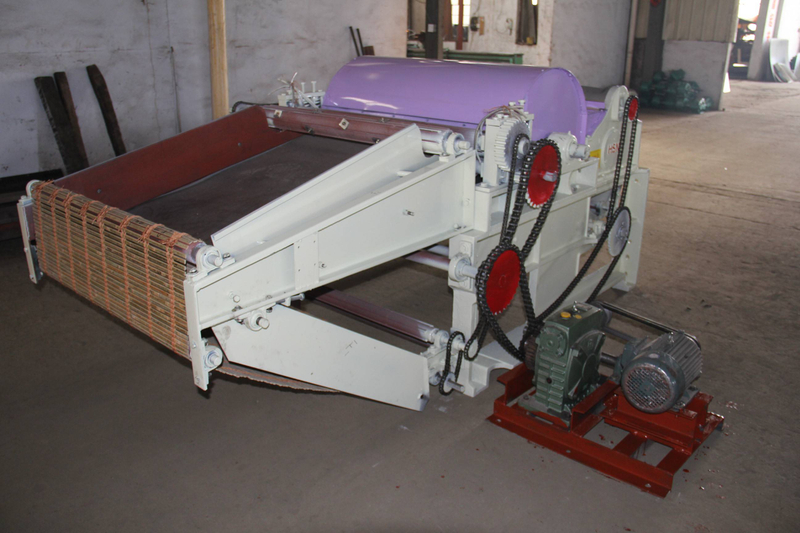

HSN600B OPENER / Automatic Refeeding Fabric Opening Machine

Brief introduction
HSN600B Opener / Automatic Refeeding Opening Machine equipped with 24inch iron doffer for opening, ratio of fiber opened can be up to 95%, it keeps fiber good frizzy and smooth, that is best for filling the products in fluffy, resilience. HSN600B Opener with high automation, it can auto continuously recycle of un-opened fabrics waste that are carried out till the waste (yarn/chindi) convert into fibers.

HSN600B Opener adopts gear-worm type gearbox with inverter motor to control feeding speed, the iron doffer is mounted high quality card clothing.



Technical specifications

Model

HSN600B

Working width

1000mm

Licker-in Roll Diameter

24inch/600mm

Roller rotation speed

1178rpm

Card Clothing (teeth / inch)

3.5 or 4.5

Suction fan power/ rotation speed

1x1.5kw / 2900rpm

Main Motor Power

22kw

Overall Dimension

2660x1500x1200mm

Weight

1500kg

Output

120 - 160kg/hour



Application
HSN600B Opener is used for opening textile waste/chindi/fabric waste/yarn waste, the recycled fibers are suitable for mattress, bedding, gaddi, quilts, pillow, sofa filling etc.




HSN600B OPENER / Automatic Refeeding Opening Machine

Brief introduction
HSN600B Opener / Automatic Refeeding Opening Machine equipped with 24inch iron doffer for opening, ratio of fiber opened can be up to 95%, it keeps fiber good frizzy and smooth, that is best for filling the products in fluffy, resilience. HSN600B Opener with high automation, it can auto continuously recycle of un-opened fabrics waste that are carried out till the waste (yarn/chindi) convert into fibers.

HSN600B Opener adopts gear-worm type gearbox with inverter motor to control feeding speed, the iron doffer is mounted high quality card clothing.



Technical specifications

Model

HSN600B

Working width

1000mm

Licker-in Roll Diameter

24inch/550mm

Roller rotation speed

1178rpm

Card Clothing (teeth / inch)

3.5 or 4.5

Suction fan power/ rotation speed

1x1.5kw / 2900rpm

Main Motor Power

22kw

Overall Dimension

2660x1500x1200mm

Weight

1500kg

Output

120 - 160kg/hour



Application
HSN600B Opener is used for opening textile waste/chindi/fabric waste/yarn waste, the recycled fibers are suitable for mattress, bedding, gaddi, quilts, pillow, sofa filling etc.
