4x10inch Rolls Fiber Blending Machine

  • HSN410

  • HSN

  • 84451190

  • Mature technology and Economic investment

  • Blow room / card drops Recycling

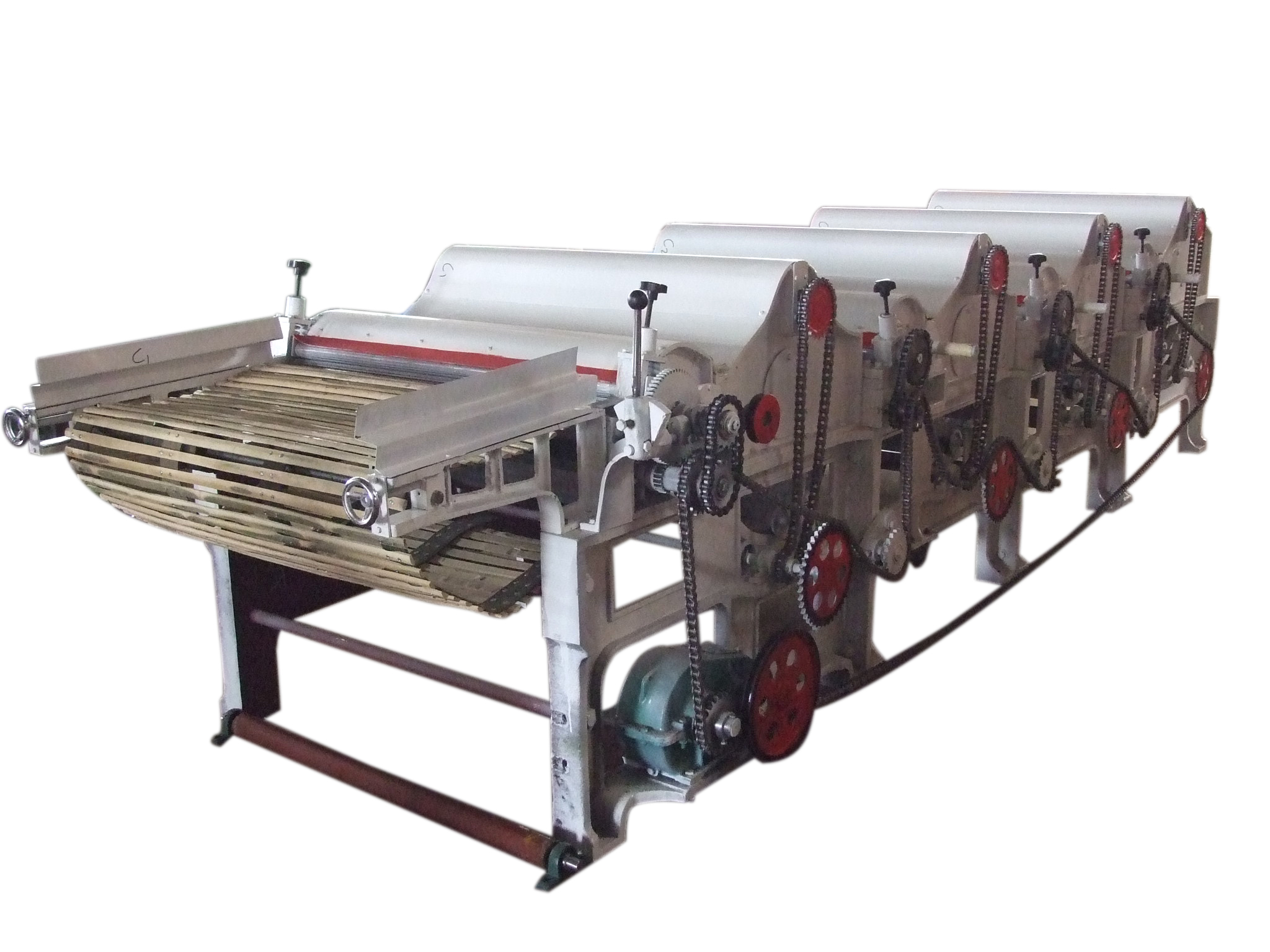

HSN410 ( 4x10inch Rolls Fiber Blending Machine )

Brief Introduction
This machine removes impurities in the cotton using mechanical centrifugal force emerged by high speed revolving of barbed rollers and fluffs cotton, then presses to flakes.

Technical Specifications
Roll diameter: 10inch / 250mm

Working width: 1000mm

Roll rotation speed :1900rpm for the first, 2100rpm for the second, third and the fourth.

Main Motor: 7.5kw for first, 5.5kw for second, third and the fourth.

Suction Fan Power/ rotation Speed: 4x1.5kw / 2900rpm

Outside dimension:1150x1500x1600mm for each roll

Production: 100-130 kg per hour

Gross Weight: 550kg per roll

HSN410 cotton fiber blending machine can be used to process fiber blending, fiber cleaning, cotton waste recycling, quilts wadding, it can remove short floss, broken/ungained cotton, waste yarn, and dust so on, keep health fiber. Fiber length is 12-24mm.


Blow room/card dropping
